Cluster & Control Plane

The Cluster tab of the dashboard.

The scheduler's own state and vitals: which workers exist, what is queued and why, how long dispatch is taking, and how the store and services are behaving. The DAG pages describe your pipelines; this page describes the system running them.

Two sub-tabs: Live for current state, Analytics for trends. Each refresh makes two requests, and polling pauses while the browser tab is hidden.

Status colours

	Applied when
Green ✓	Workers present, jobs running, throughput moving, dead-letter queue empty, nothing parked, no capability gaps, store connected
Amber !	Jobs parked, store dropping writes, dispatch or heartbeat in the middle band, a pending reason recorded
Red ✕	Zero workers, ready queue with nothing running, dead-letter queue non-empty, capability dead end, store down

Values with no particular meaning stay white. Every coloured value also carries a ✓ ! ✕ glyph, so the state is readable without relying on colour.

Ready queue is deliberately uncoloured, because a deep queue is normal under load. It turns red only when there is queued work and nothing running.

Live

Diagnostics

Panel	Shows	Inference
Pending reasons	Why the scheduler could not place a queued job on its last attempt	no worker registered with capability X needs a new worker; all are at capacity needs more slots
Capability supply / demand	Jobs waiting per requirement against workers offering it	waiting > 0, workers = 0 is a dead end, and the job cannot run until a matching worker registers. The panel prints the command
Dead-letter queue	Jobs that exhausted their retries, with each reason	Non-zero means something is failing repeatably, not just slowly
Queue wait	p50 / p95 / p99 / max, submit to dispatch	A high p99 against a low p50 means a few jobs are being starved
Retries	Distribution by attempt number, and the retry rate	A rising rate with flat failures means jobs are succeeding on retry

Pre-dispatch board

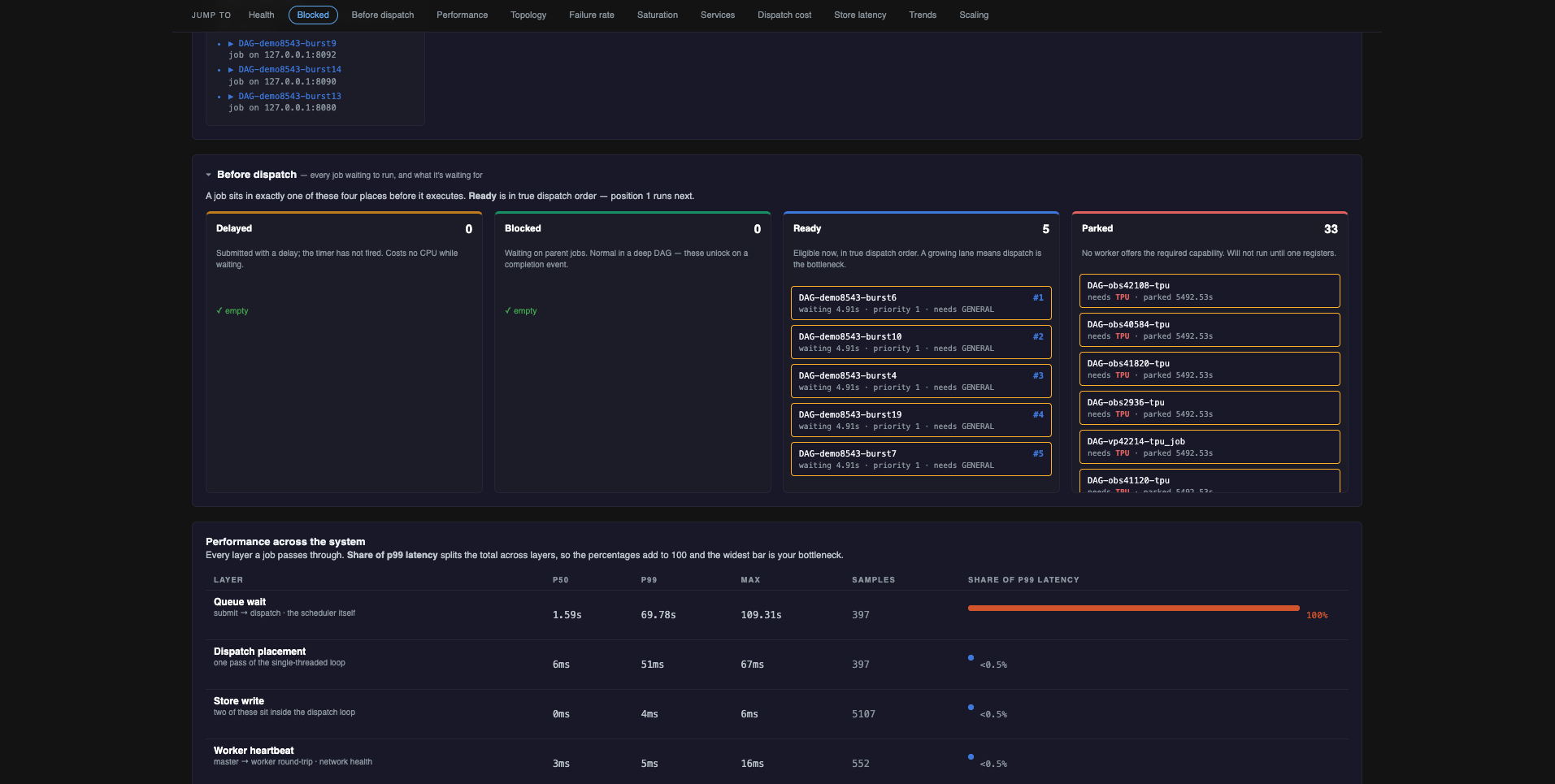

Lane	Meaning	Action
Delayed	Submitted with a delay; the timer has not fired	None
Blocked	Waiting on parent jobs	None, normal in a DAG
Ready	In the priority queue, waiting for a slot	Add capacity, or wait
Parked	No worker offers the required capability	Start a matching worker; parked jobs are released automatically when one registers

Topology

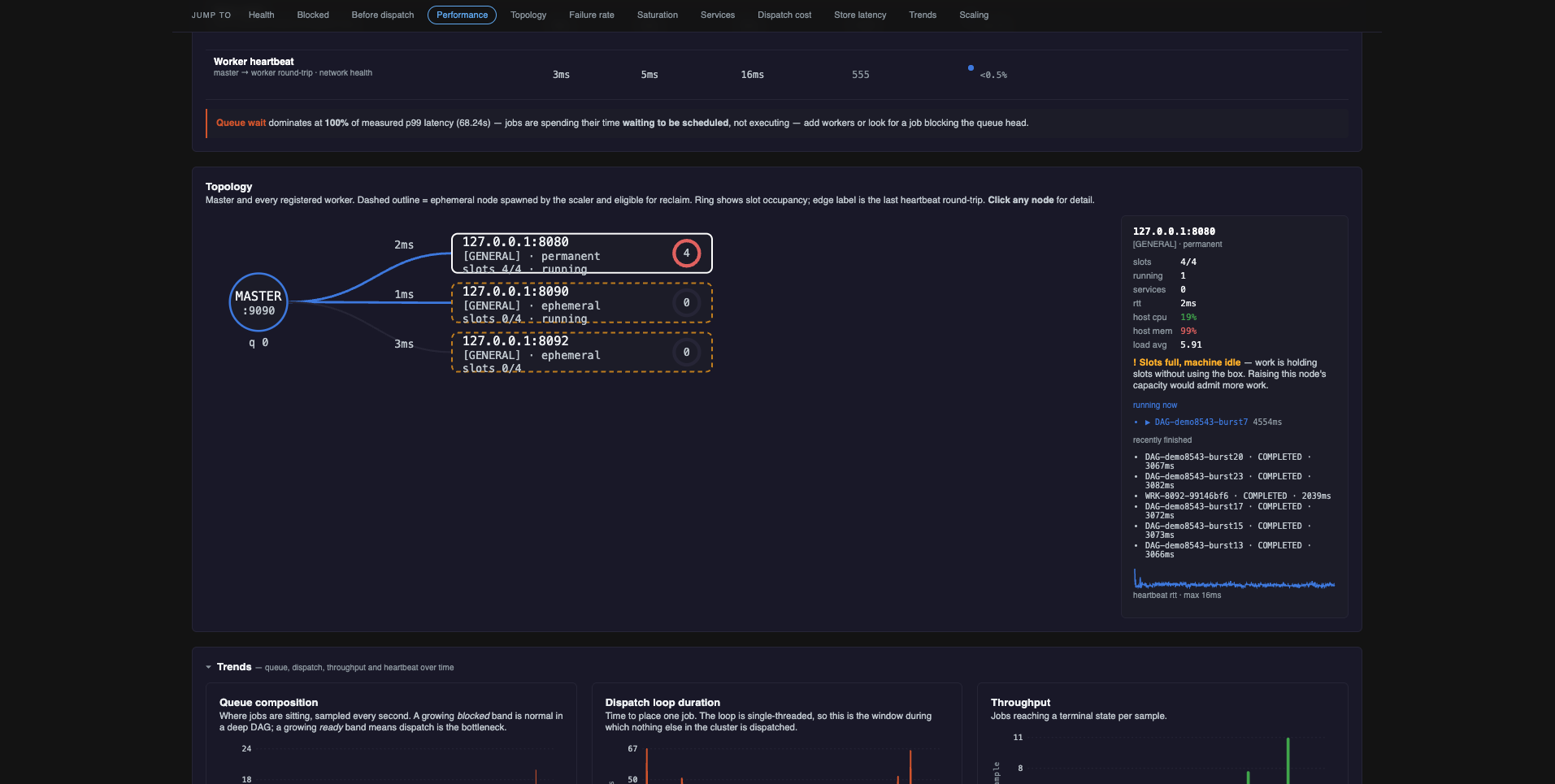

A graph of the Master and every registered worker. Solid outline = permanent, dashed = ephemeral, and the ring shows slot occupancy. Clicking a node opens a detail panel with its capability, slots, running jobs, hosted services, heartbeat history and host vitals.

Host vitals (host cpu, host mem, load avg) come from the worker's heartbeat. They are independent of slot occupancy, which makes three readings distinguishable:

Slots	Host CPU	Meaning
Full	Low	Jobs are holding slots without using the machine, so capacity could be raised
Full	High	The node is genuinely at its limit
Free	High	Admitting more work here will slow what is already running

A worker that cannot report them, or one built before the heartbeat carried them, shows n/a rather than zero.

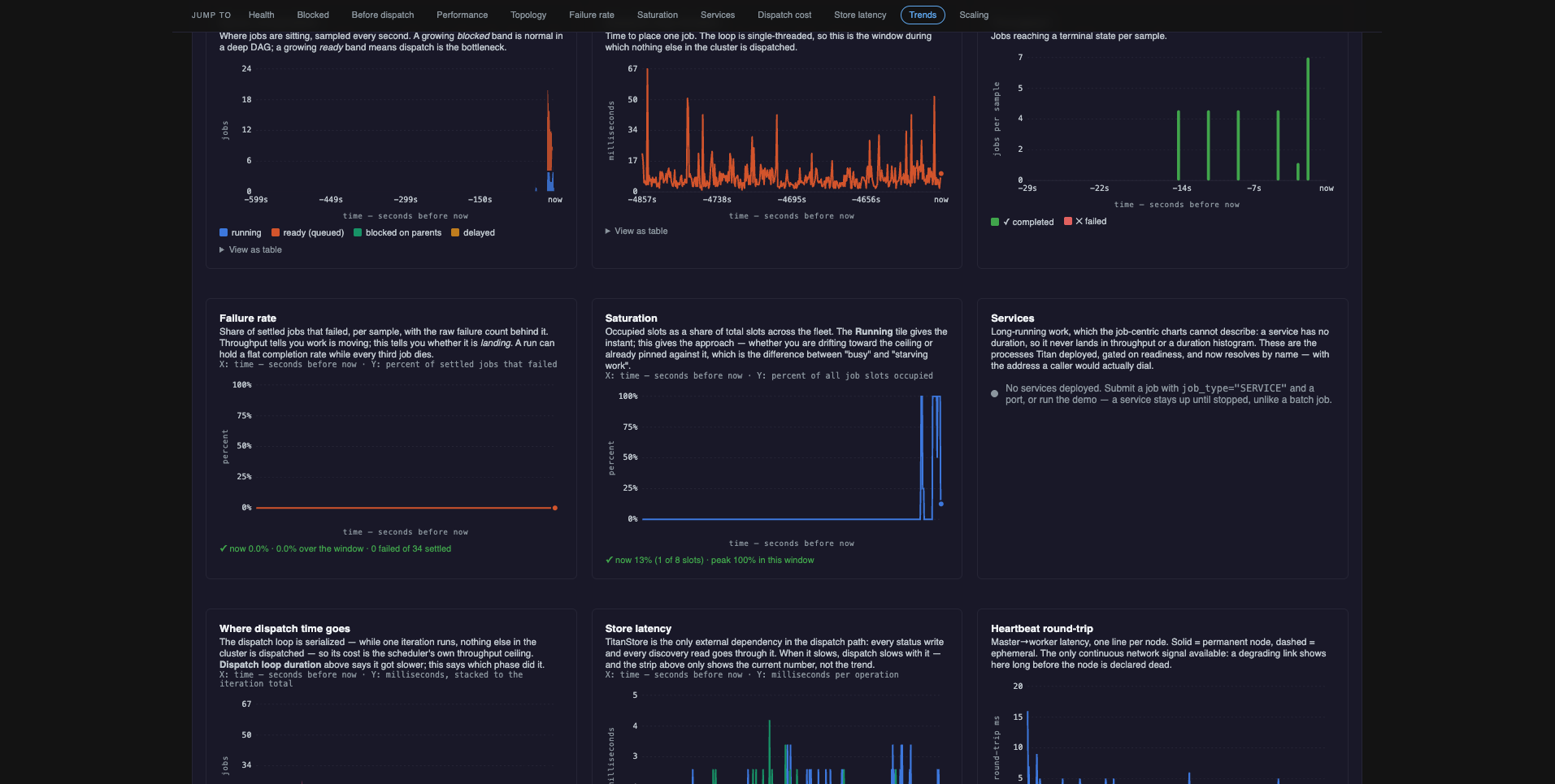

Charts

Chart	X	Y	Inference
Queue composition	time	jobs	Stacked running / ready / blocked / delayed, the board over time
Dispatch loop duration	time	ms	The serialized section's total. Rising means the scheduler itself is slowing

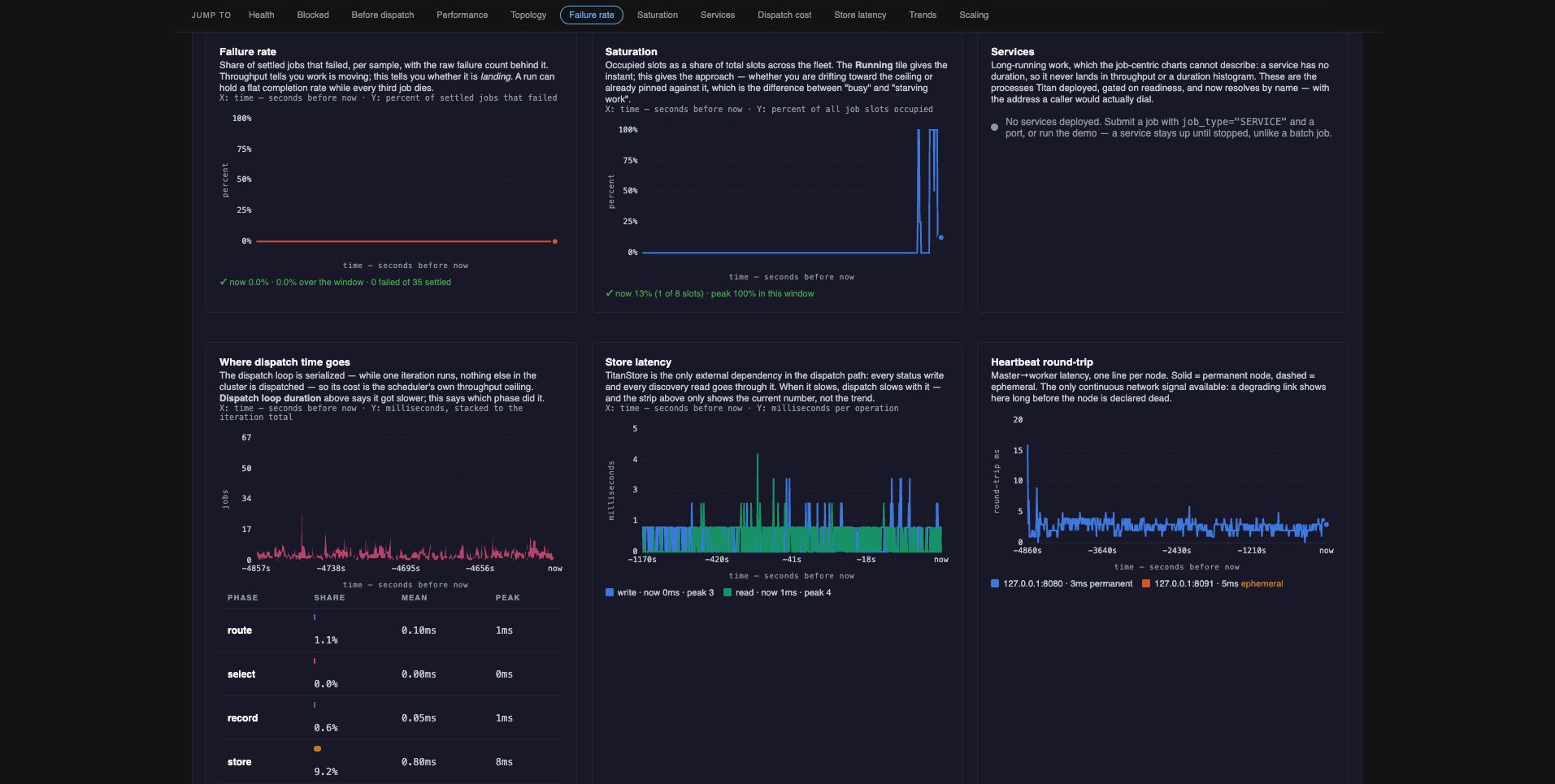

Where dispatch time goes	time	ms, stacked	Splits each iteration into route, select, record, store, send. A share table below gives percentage, mean and peak per phase
Throughput	time	jobs per sample	Completed and failed per sample
Failure rate	time	% of settled jobs	Throughput can stay flat while the failure share climbs
Saturation	time	% of slots occupied	Whether the pool is approaching its ceiling or already at it
Store latency	time	ms	Read and write plotted separately; writes sit on the dispatch path, reads on status polling
Heartbeat round-trip	time	ms per node	A degrading link shows here before a node is declared dead

Saturation uses occupied slots, not running

runningJobs holds a job until its completion callback arrives, so a job whose worker was reclaimed mid-flight can still be counted there. Saturation is computed from the live workers' own counters instead. When the two diverge the legend says N job(s) counted running with no live slot.

Services

One row per live service: dialable address, uptime, host node, deploy attempts, and state. Services appear nowhere else on the dashboard, because a service has no duration and so never lands in a throughput or duration chart.

• A deploy job reading COMPLETED is normal. A SERVICE job finishes once readiness passes; the process it started keeps running. The Service and Deploy job columns are separate facts.
• Deploys counts deploy attempts, not process restarts. A crash-looping service is restarted by its worker, which does not report that to the Master.
• Autoscaler-spawned workers use the same deploy path and are excluded here; they appear in Topology.

Liveness is checked once, at deploy

Readiness is probed when the service is deployed and never re-probed. "Live" means the Master still has it registered. Treat this as a roster rather than a health check.

Store strip and scaling history

The store strip shows endpoint, operation and read counts, p50/p99 latencies, dropped writes, reconnects, and whether the store's view of the fleet matches the Master's. Dropped writes are the meaningful outage signal, because the store fails open, so the error count stays at zero.

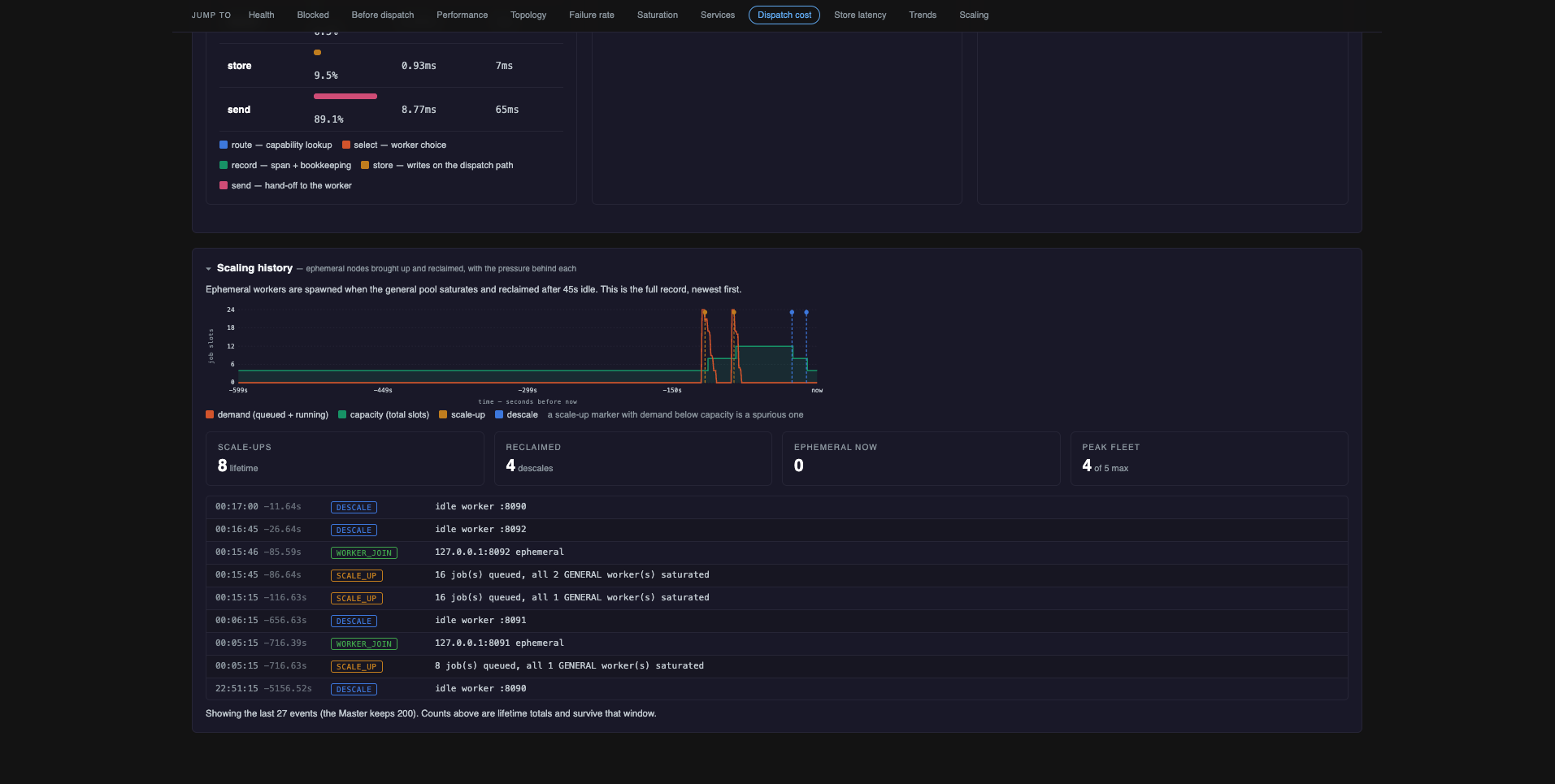

Scaling history lists every scale-up, descale, worker join and worker loss with the reason recorded at the time. Scale-up requires queued work and a saturated general pool.

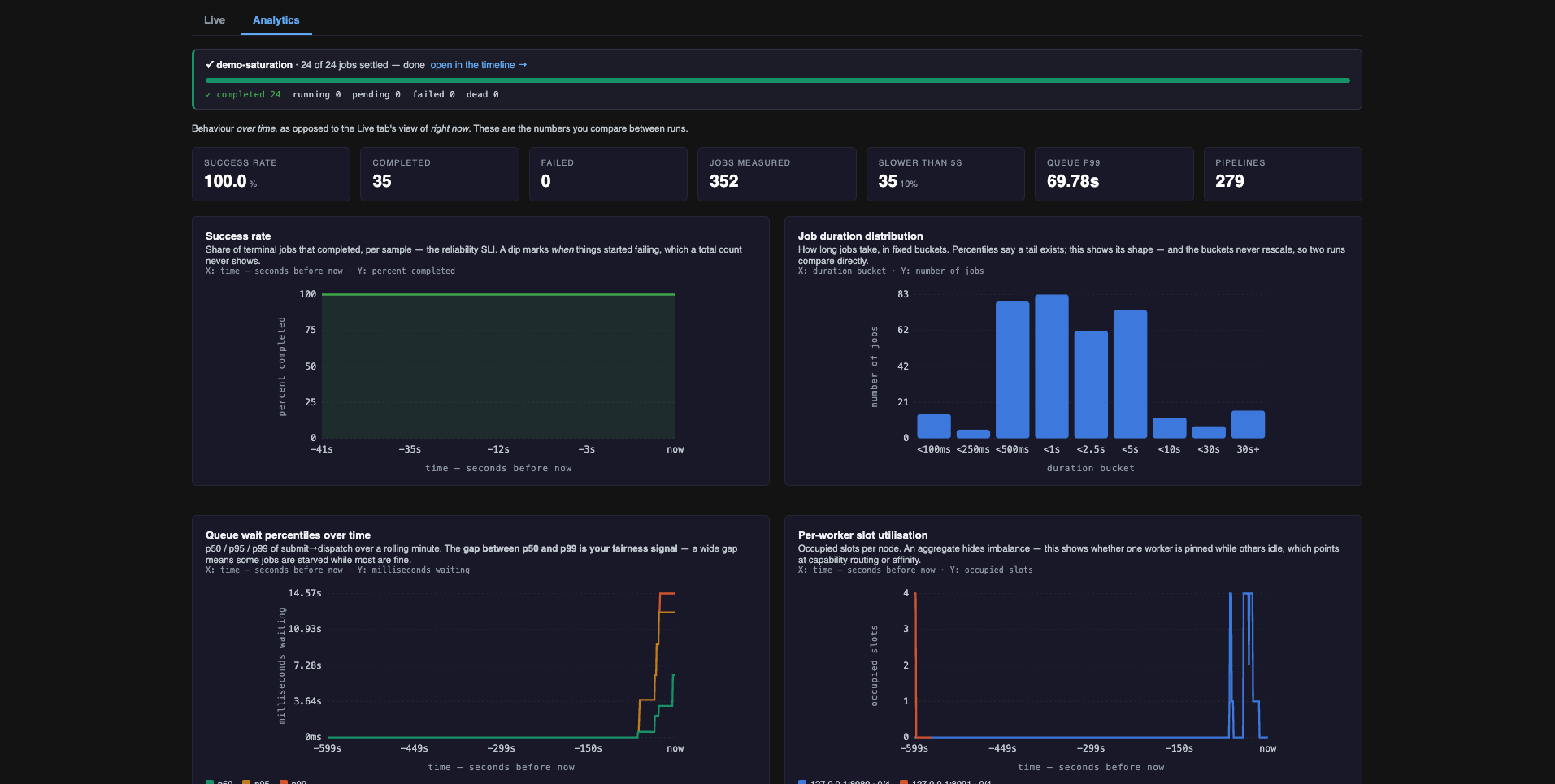

Analytics

Chart	X	Y	Inference
Success rate	time	% completed	Reliability trend
Job duration distribution	duration bucket	jobs	Whether the workload is one cluster or several
Queue wait percentiles	time	ms	Whether starvation is appearing in the tail
Per-worker slot utilisation	time	occupied slots per node	One pinned node while others idle points at capability routing or affinity
Does priority actually work?	declared priority	ms waited	Whether the priority queue is reordering
Pipeline duration trend	run	seconds	Whether the same DAG is getting slower

Priority panel

Bars are median queue wait per priority band; the dashed line is p95. The verdict beneath is computed from those numbers in the page.

Two constraints on the measurement:

• Only dispatches that waited ≥250ms are counted. A job placed into a free slot waits near zero regardless of priority, and including those flattens every band.
• Fewer than three contended samples in a band reports "not enough data" instead of a verdict.

A matching median with a shorter p95 in the high band still indicates priority is working, because it means those jobs were not caught behind the backlog.

Pipeline duration trend

Wall clock per completed run, grouped by pipeline. Runs are separated by the manifest's run_ts, one stamp per submission, not by a time gap, since back-to-back runs would otherwise merge. It reads persisted span history, so runs from before the last Master restart still count. The five most-run pipelines are plotted; the table lists all of them and scrolls.

Demo runner

Submits a preset workflow and shows its progress, with a link to that run's timeline.

Preset	~Time	Exercises
Fan-out / fan-in	25s	Parallelism, blocked lane, critical path
Saturation burst	45s	Queue wait, starvation, scaling pressure
Failures and retries	60s	Retry spans, dead-letter queue, failure reasons
Capability dead end	10s	Parked lane, pending reasons, capability gap
Priority test	30s	Priority ordering under saturation
Deep chain	30s	Graph depth, dependency-release latency
Deploy a service	30s	Services panel, readiness gating, address discovery

The only endpoint that changes cluster state

The dashboard has no authentication. The request carries a preset name and nothing else: no script, no job spec. The preset scripts are written by the dashboard itself, and only one run is allowed at a time. Set TITAN_DASHBOARD_DEMO=0 to disable it. Every other route is read-only.

Signal reference

All fields come from OP_STATS_JSON with a metrics discriminator, sampled once a second into bounded ring buffers at three resolutions (1s / 10s / 100s, selected by the history control).

Field	Shape
queue	[ts, ready, blocked, running, delayed, workers, slots, occupied]
dispatch	[ts, ms]
dispatch_phases	[ts, route, select, record, store, send]
throughput	[ts, completed, failed]
wait_percentiles	[ts, p50, p95, p99]
store_latency, store_read_latency	[ts, ms]
worker_load	{host:port → [ts, load, maxCap]}
worker_load_live	Keys of worker_load still registered
services	id, host, port, worker, worker_permanent, since, uptime_ms, deploy_attempts, status
capability	cap, waiting, parked, workers
parked	total, by_capability, deadline_ms
dlq	depth, jobs[]
retries	dispatches, rate, histogram[]
scaling	scale_ups, descales, ephemeral_now, peak_workers, max_workers
store	Connection, endpoint, op and read counts, latencies, dropped writes, reconnects, drift

Per-worker host vitals are on the worker objects in the plain stats payload: host_cpu_pct, host_mem_pct, host_load_x100, each -1 when the worker did not report them.

Capacity comes from queue, not from summing worker_load

A departed worker's worker_load and heartbeat series are retained for titan.metrics.worker.grace.ms (120s) before being dropped, so during that window the map still contains nodes that have left the fleet. The slots field in queue is sampled from the registry each tick and is the authoritative total.
